What does NEMA-6-50 and NEMA-14-50 mean?

What does NEMA-6-50 and NEMA-14-50 mean?

The Wattsaving US10 240v EV charger can be easily installed and setup if a NEMA outlet is already installed. Wattsaving provide 2 types of NEMA connector for options: NEMA-6-50 and NEMA-14-50.

If you are new to electric vehicle chargers, this article will be good for you to learn more about NEMA type connectors.



What does NEMA mean?

NEMA stands for the National Electrical Manufacturers Association, which is a trade association based in the United States that represents the interests of electrical equipment and medical imaging manufacturers. NEMA develops and publishes standards and guidelines related to the design, manufacturing, and testing of electrical equipment and medical imaging devices.

NEMA standards cover a wide range of products, including motors, switchgear, transformers, electrical enclosures, and medical imaging equipment. These standards are intended to ensure that electrical equipment is safe, reliable, and compatible with other electrical systems.

The NEMA standard for electrical outlets defines the physical dimensions and electrical specifications for various types of electrical outlets, such as NEMA-5, NEMA-6, and NEMA-14. These standards ensure that electrical outlets are compatible with the corresponding plugs on electrical devices, and that they are designed to operate safely and reliably within specific electrical parameters.

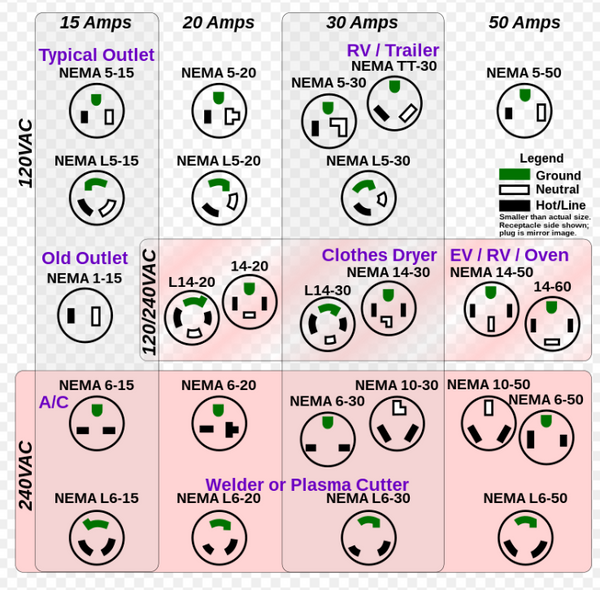

NEMA type outlet



What are NEMA-6-50 and NEMA-14-50?

NEMA-6-50 and NEMA-14-50 are two types of electrical outlets that are commonly used for high-powered electrical appliances, such as electric vehicles, welders, and large power tools.

A NEMA-6-50 outlet is a 240-volt, 50-amp outlet that is commonly used for high-powered appliances that require a lot of electrical energy. This type of outlet has two hot wires and a ground wire, but no neutral wire. It is typically used for electric welders or other equipment that requires a high amount of power.

A NEMA-14-50 outlet is also a 240-volt outlet, but it has a higher capacity than the NEMA-6-50 outlet, with a maximum rating of 50 amps. This type of outlet has two hot wires, a neutral wire, and a ground wire. It is commonly used for charging electric vehicles, as well as for other high-powered appliances.

Both NEMA-6-50 and NEMA-14-50 outlets are typically hardwired directly to the electrical supply and require professional installation by a licensed electrician. It's important to note that the specific outlet required for a particular appliance will depend on the appliance's electrical requirements, so it's always best to consult with the manufacturer's specifications or a licensed electrician to ensure that the correct outlet is installed.



How to install a NEMA outlet for your home?

Installing a NEMA outlet involves several steps, including preparing the location, wiring the outlet, and securing it in place. Here's a general guide on how to install a NEMA outlet:

Determine the outlet location: Decide where you want to install the NEMA outlet and ensure it's in a safe and accessible location. Check local electrical codes to ensure compliance.

Turn off power: Turn off the power supply to the outlet by turning off the circuit breaker in the electrical panel box.

Prepare the outlet box: Remove the cover plate from the existing outlet box or install a new outlet box if one doesn't exist. Ensure the outlet box is securely mounted to the wall or other structure.

Install the outlet: Install the NEMA outlet into the outlet box. Connect the ground wire to the grounding screw on the outlet, and then connect the black wire to the brass terminal screw and the white wire to the silver terminal screw.

Test the outlet: Once the wiring is complete, test the outlet with a voltage tester to ensure it is properly wired and that there's no power running to the outlet.

Secure the outlet: Once the outlet is wired and tested, secure it into the outlet box using the screws provided. Install the cover plate to finish.

Turn on power: Turn the circuit breaker back on to supply power to the NEMA outlet.

Note: If you're not comfortable working with electrical wiring or unsure about any part of the installation process, it's recommended to consult a licensed electrician to install the outlet for you.

Find a Wattsaving certified installer here.
