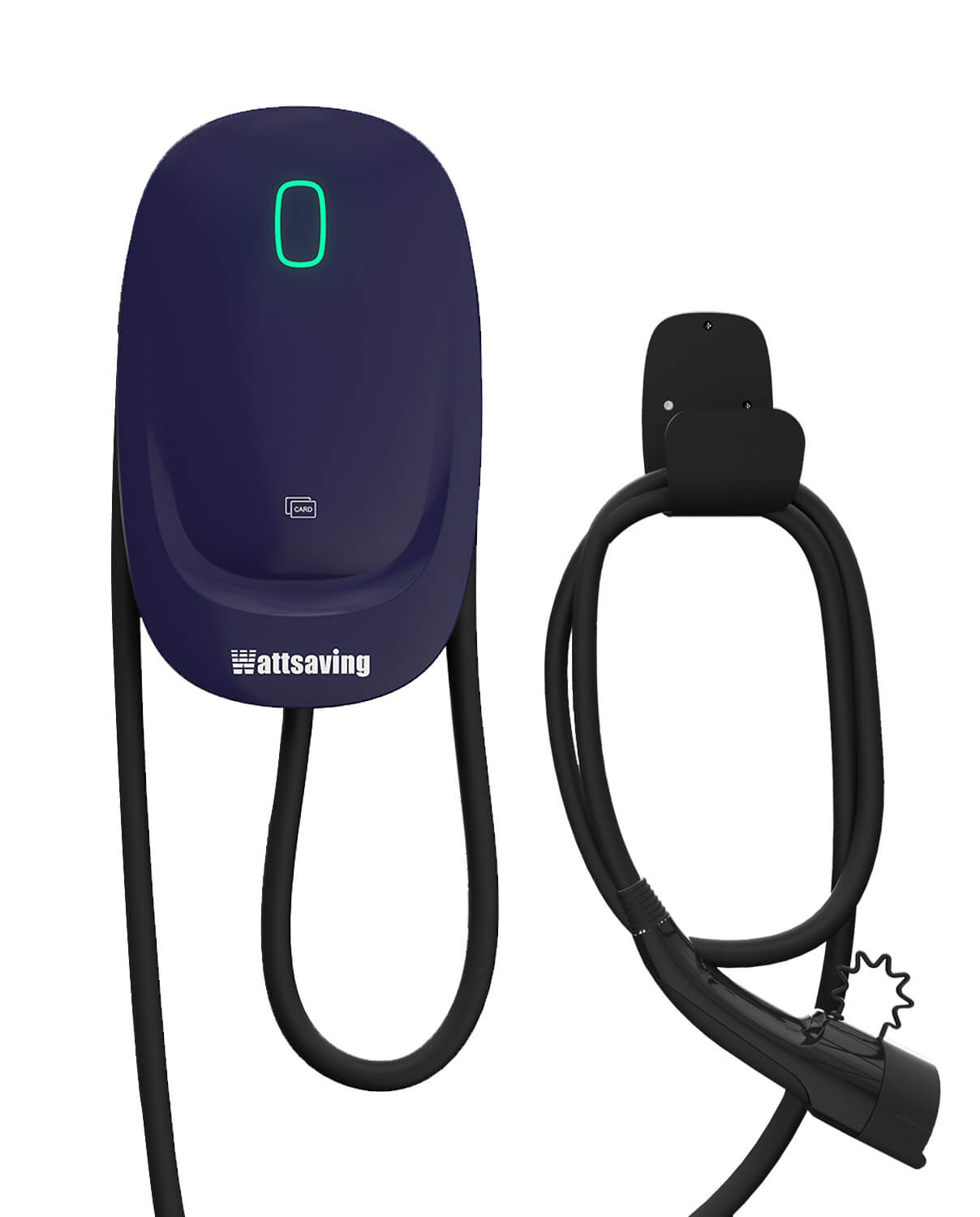

Wattsaving E22 Three-phase 22kW EV Charger Wall Mounted
Wattsaving E22 Three-phase 22kW EV Charger Wall Mounted
Couldn't load pickup availability
Fast charging: Wattsaving E22 EV charger provides fast charging capabilities for electric vehicles in European countries, allowing drivers to quickly charge their car and get back on the road.
Versatility: Wattsaving EV charger is compatible with a wide range of electric vehicles, including popular models such as Tesla, Volkswagen, BMW, BYD and more, making it a versatile solution for any EV owner.

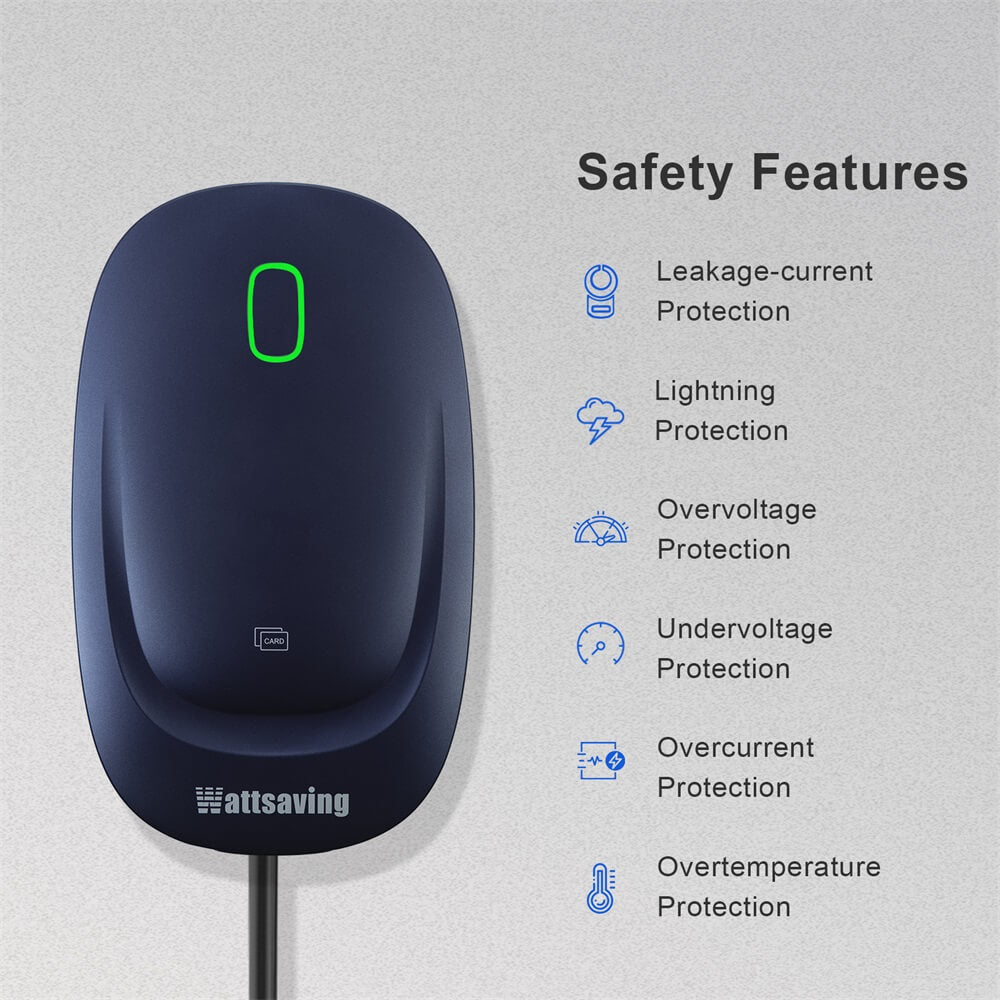

Safety features: The E22 EV charger is CE certified and equipped with advanced safety features such as overload protection, over-voltage protection, and over-current protection to ensure that the charging process is safe and secure.
Sustainability: Wattsaving home EV charger is designed with sustainability in mind, featuring energy-efficient components that reduce energy consumption and minimize environmental impact.
Easy installation: Our 22kW EV charger can be connected to both single-phase and three-phase electricity. You can install it in your house or outside. The package comes with all the necessary mounting hardware, cables, and instructions for easy installation. Please contact a local installer or licensed electrician to install this EV charger. Also, you can find a Wattsaving preferred installer on our website.
Key Features
Wattsaving E22 EV Charger:
- Three-phase 22kW home EV charger: You can charge your EV 3X faster than a single-phase 7kW EV charger.
- 2 Charging Mode available: Plug-and-Charge (default) and RFID card activate to charge.
- Enclosure for dust, water, and impact-proof: both indoor and outdoor installation are available.
- Easy to install and use: Compact design to install inside or outside with a long-reach 5m cable.

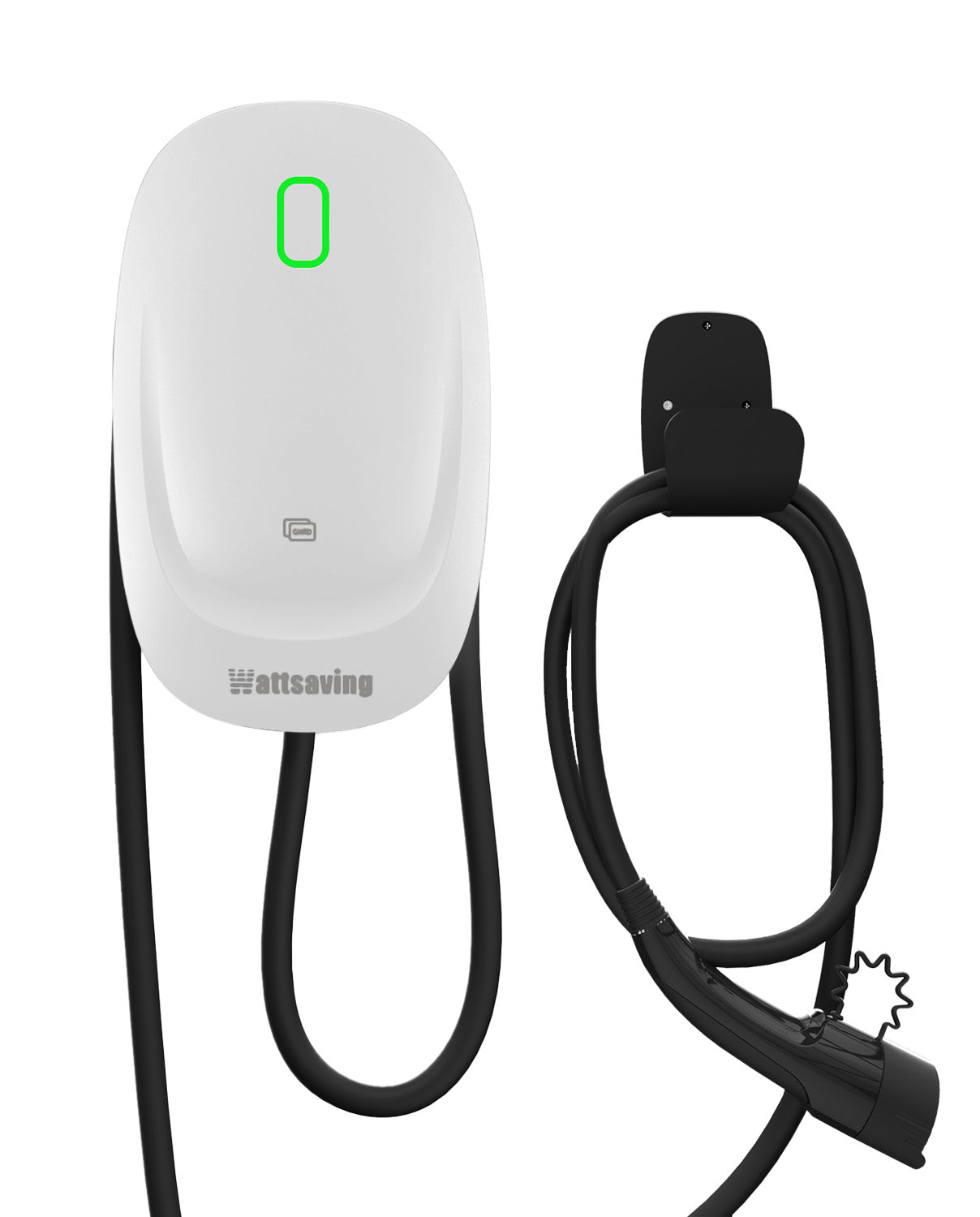

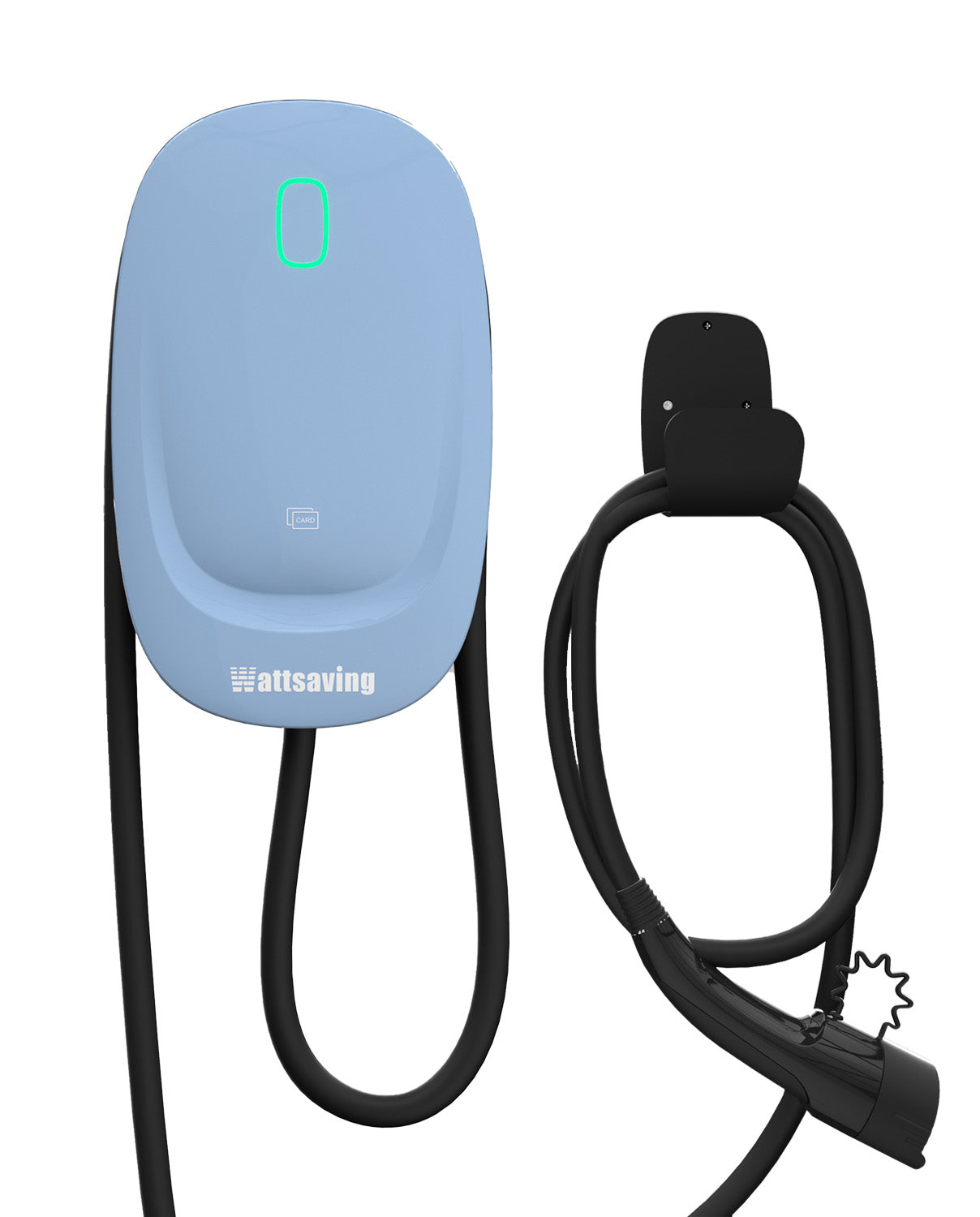

- 4 Colors for your option: White, Blue, Black and Purple.
- Standard 2 year warranty. Learn more at warranty service.
Specifications
| Model | Wattsaving E22 |
| AC Power Output Rating | Maximum 22 kW |
| AC Power Input Rating | 380±20%Va.c., 50/60 Hz, 32 A (Max) |
| Connector Type | Type 2 |
| Indicator | LED |
| Cable Length | 5m |
| Charging Mode | Plug-and-Charge / RFID Card |
| Card Reader | RFID |
| Enclosure Ratings | IP65 for indoor or outdoor installation |
| Input Wiring | Hardwired |
| Input Cord(three-phase) | L1, L2, L3, N (Neutral), and PE (Protective Earth) |
| Input Cord(single-phase) | L1, N (Neutral), and PE (Protective Earth) |
| Protection | Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under Voltage protection, Over/Under temperature protection. |
| Ground Fault Detection | Built-in Type A RCD (6mA DC) |
| Storage Temperature | -40 to 80℃ |
| Operating Temperature | -30 to 55℃ |
| Operating Humidity | 5% to 95% |
| Certification | CE |
| Standards | EN/IEC 61851-1:2019 EN/IEC 61851-21-2:2021 IEC/IEC 62955:201 IEC/IEC 62196-2 |
| Dimension (H x W x D) | 13" x 7.9" x 4.6" (331 x 201 x 116 mm) |
| Net Weight | 3.8kg |
| Gross Weight | 4.6kg |
| Warranty | 2 Years |
| Installation | Wall mounted / Pedestal mounted |
Installation
Download User Manual.
Need installation? Find a Wattsaving certified installer.
Package List
- Wattsaving E22 EV Charger (with connector) x 1
- Connector Holster x1
- Screw Terminal Strip x1
- Wall-dock Back Panel x1
- Wall Anchor x7
- Type A Screw (M4 x 12 mm) x4
- Type B Screw (M4 x 10 mm) x4
- Type C Screw (M4 x 30 mm) x7
- RFID Card x 2
- Product Quick Guide x1
- User Manual x1
Three-phase 22kW Fast Charging
You can charge up to 150km of driving per hour. It's also compatible with single-phase if your house don't have three-phase electricity.

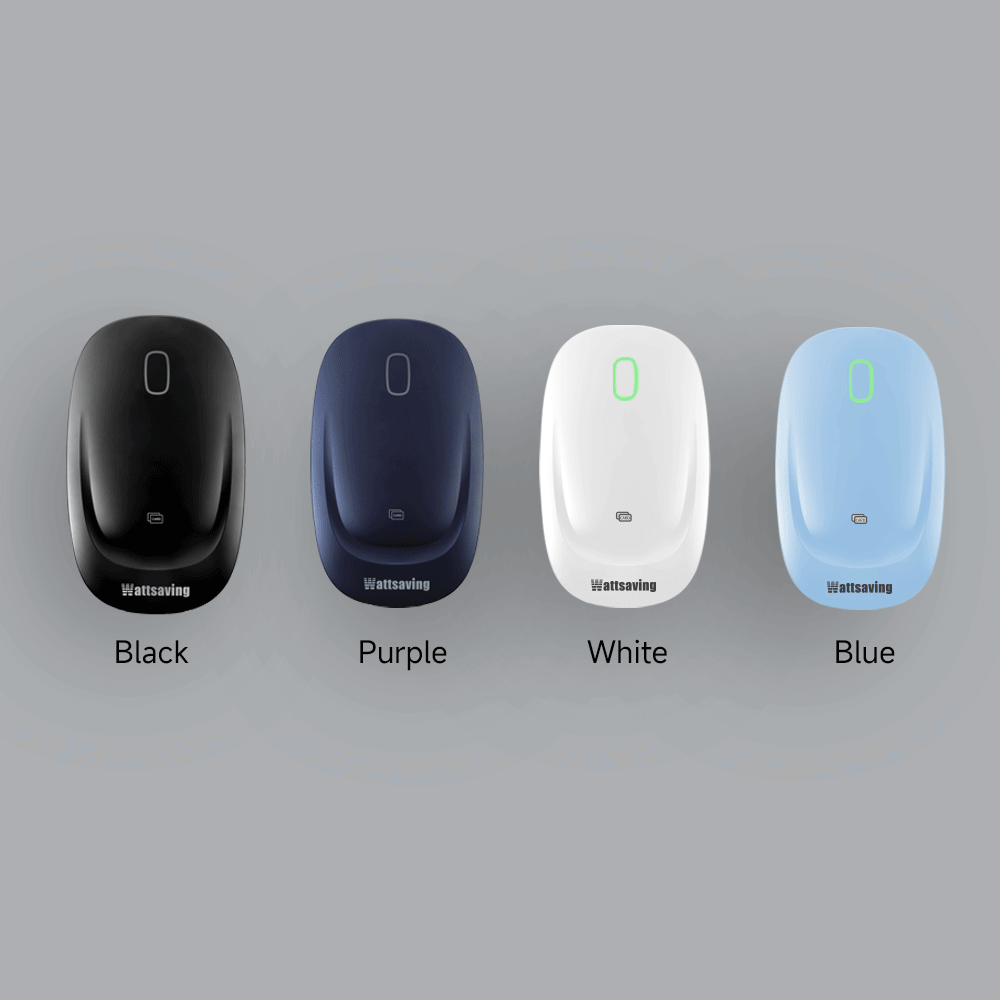

Make Fun Of Charging
Wattsaving E22 22kW EV charger provides 4 color(Black, Purple, White, and Blue) for your choice.

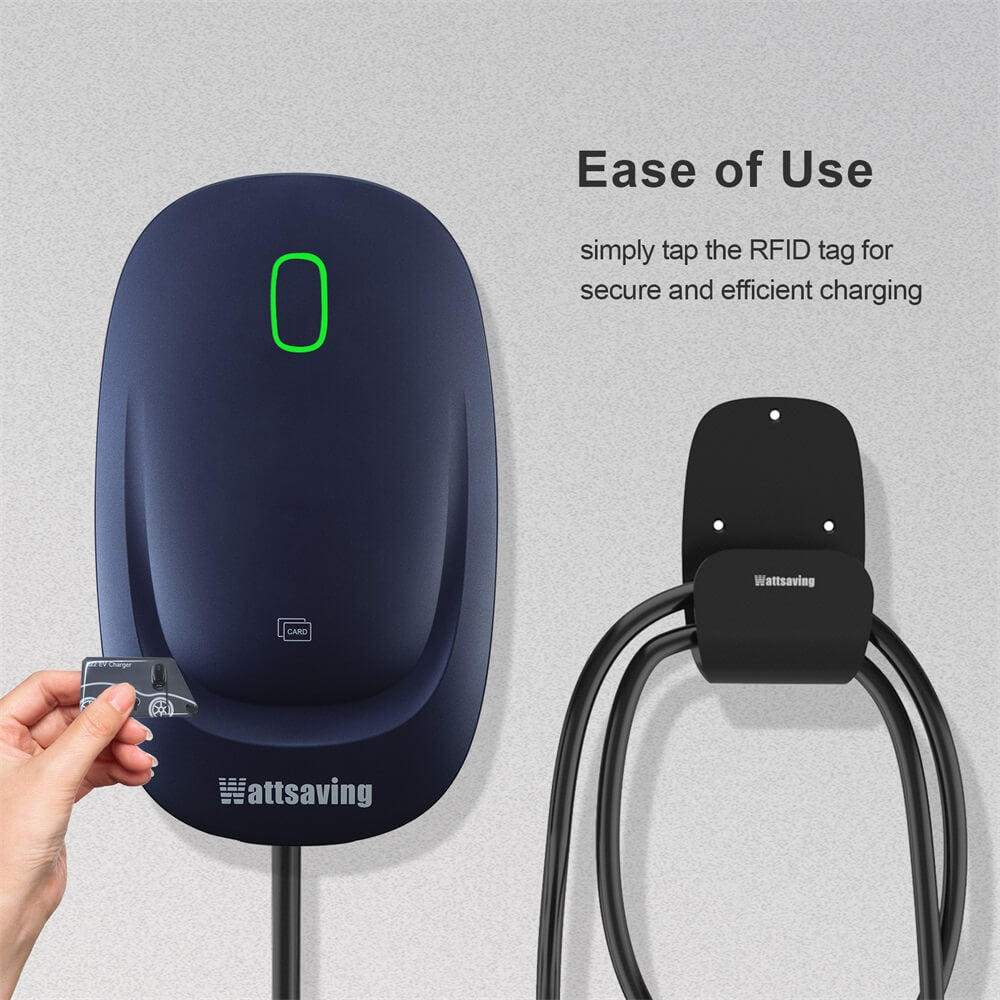

RFID Cards for Security
When the RFID activation charging mode is on, you can lock others away from using your Wattsaving EV charger.
