Wattsaving US10 9.6kW(40A) EV Charger Wall Mounted
Wattsaving US10 9.6kW(40A) EV Charger Wall Mounted
Couldn't load pickup availability

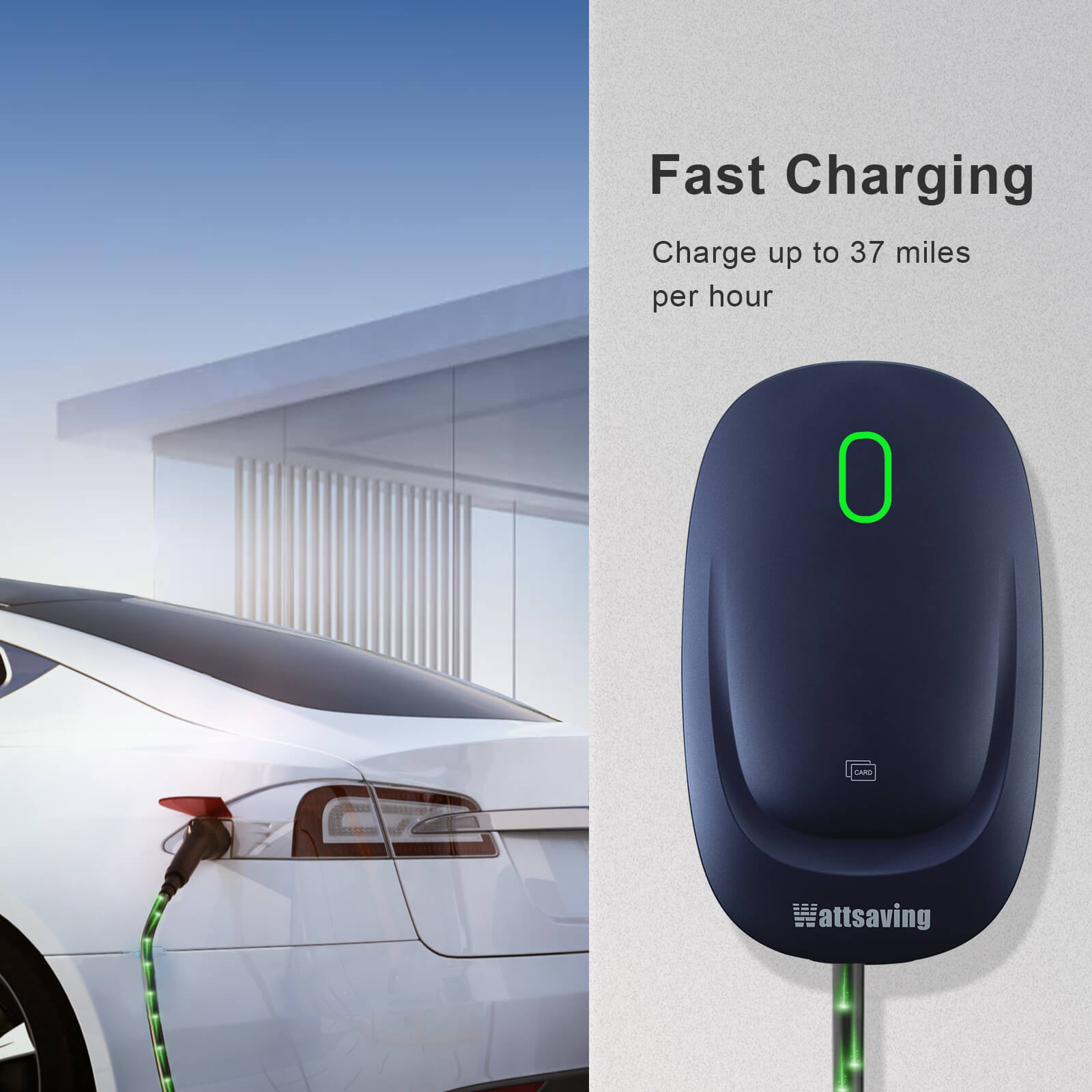

Fast charging: Wattsaving US10 EV charger charges up to 37MPH (60km/h). It provides fast charging capabilities for electric vehicles, allowing drivers to quickly charge their car and get back on the road.
Versatility: Wattsaving EV charger is equipped with a J1772 connector. It's compatible with a wide range of electric vehicles, including popular models such as Tesla, Nissan Leaf, Chevy Bolt, and more, making it a versatile solution for any EV owner.
Safety features: The US10 level 2 charger is equipped with advanced safety features such as overload protection, over-voltage protection, and over-current protection to ensure that the charging process is safe and secure.
Sustainability: Wattsaving home EV charger is designed with sustainability in mind, featuring energy-efficient components that reduce energy consumption and minimize environmental impact.
Easy installation: Our EV charger is designed for easy installation, with a simple and intuitive interface that makes it easy to set up and use, even for those without technical knowledge. Additionally, it comes with all the necessary mounting hardware, cables, and instructions for hassle-free installation.
Key Features
Wattsaving US10 EV Charger:
- Level 2 240 volt, 9.6kW(40A) home EV charger: You can charge your EV more faster than the portable charger that came with your EV.
- Equipped with standard SAE J1772 connector: this Wattsaving US10 EV charger is compatible with all Electric Vehicles and Plug-in Hybrid Electric Vehicles sold in North America.
- 2 Charging Mode available: Plug-and-Charge (default) and RFID card activate to charge.
- NEMA 4 enclosure for indoor/outdoor installation: We offer NEMA-6-50 or NEMA-14-50 plug for your option.
- Easy to install and use: Simple to remove from the mounting bracket and transport between different locations.Compact design to install inside or outside with a long-reach 24.6ft(7.5m) cable.
- 4 Colors for your option: White, Blue, Black and Purple.
- Standard 2 year warranty. Learn more at warranty service.
Specifications
| Model | Wattsaving US10 |
| Dimension (H x W x D) | 13" x 7.9" x 4.6" (331 x 201 x 116 mm) |
| Weight | 14.6 lbs. (6.6 kg) |
| Storage Temperature | -40 to 176 ° F (-40 to 80 ° C) |
| Operating Temperature | -22 to 131 ° F (-30 to 55 ° C) |
| Operating Humidity | 5% to 95% |
| Mounting | Wall-mounted |
| Enclosure Ratings | IP65 for indoor or outdoor installation |

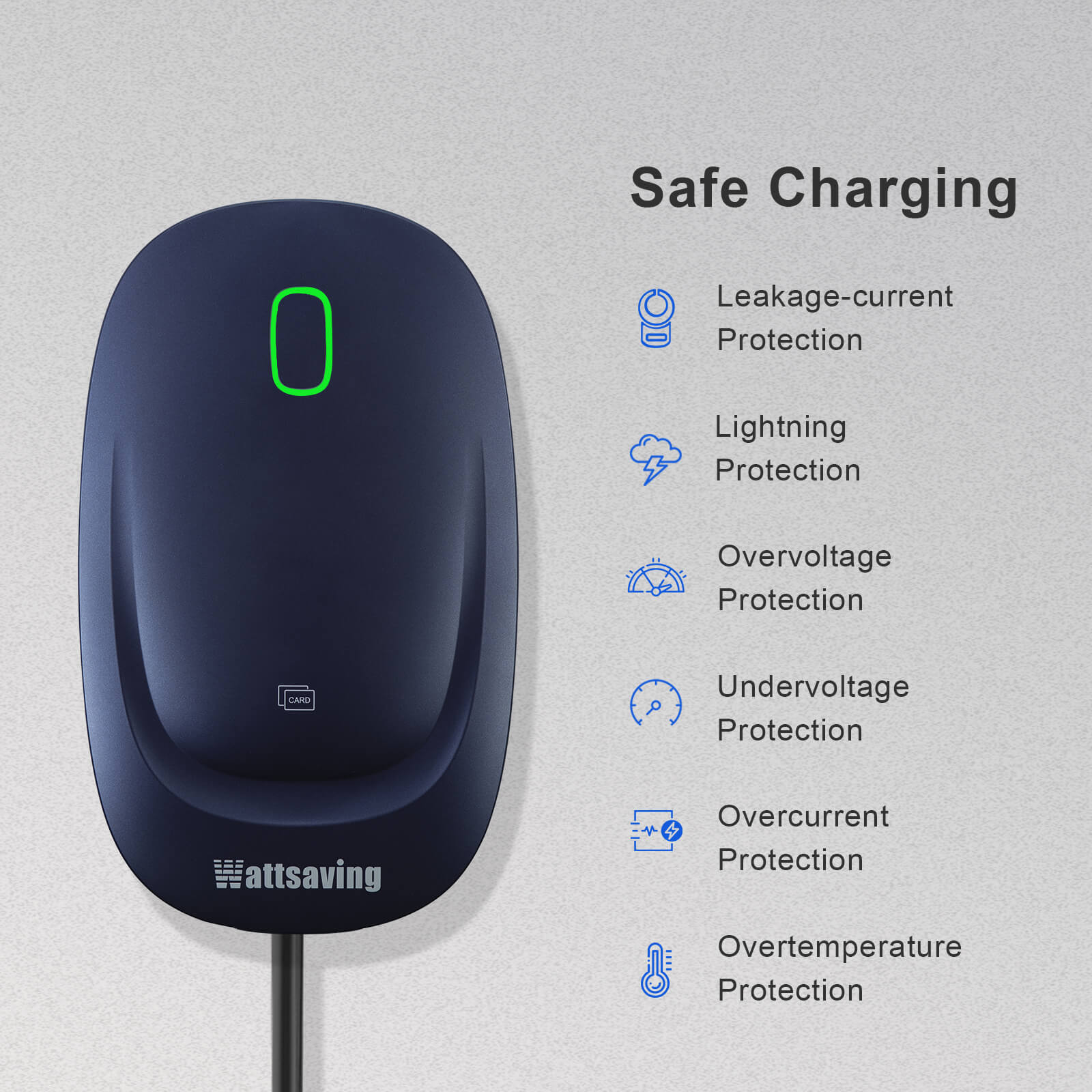

| Protection | Leakage current and ground fault protection, lightning protection, overvoltage protection, under voltage protection, over current protection, over temperature protection. |
| Ground Fault Detection | CCID 20 |
| Warranty | 2 years |
| Standards | UL2594 UL2231-1/-2 |
| Status Display | LED |
| Charging Cable Length | 24.6 ft. (7.5m) |
| Input Cord | NEMA 6-50 / NEMA 14-50 |
| AC Power Input Rating | 240±15%Va.c., 60 Hz, 40A (Max |
| AC Power Output Rating | Maximum 9.6 kW |
| Connector Type | J1772 |
| Charging Mode | Plug-and-Charge / RFID Card |
| Card Reader | RFID Activation |
Installation
Download User Manual.
Need installation? Find a Wattsaving certified installer.
Package List
- Wattsaving US10 EV Charger (with connector) x 1
- Connector Holster x1
- Wall Dock x1 / Pedestal x1
- Wall Anchor x7
- Type A Screw (M4 x 12 mm) x1
- Type B Screw (M4 x 30 mm) x7
- RFID Card x 2
- Product Quick Guide x1
- User Manual x1

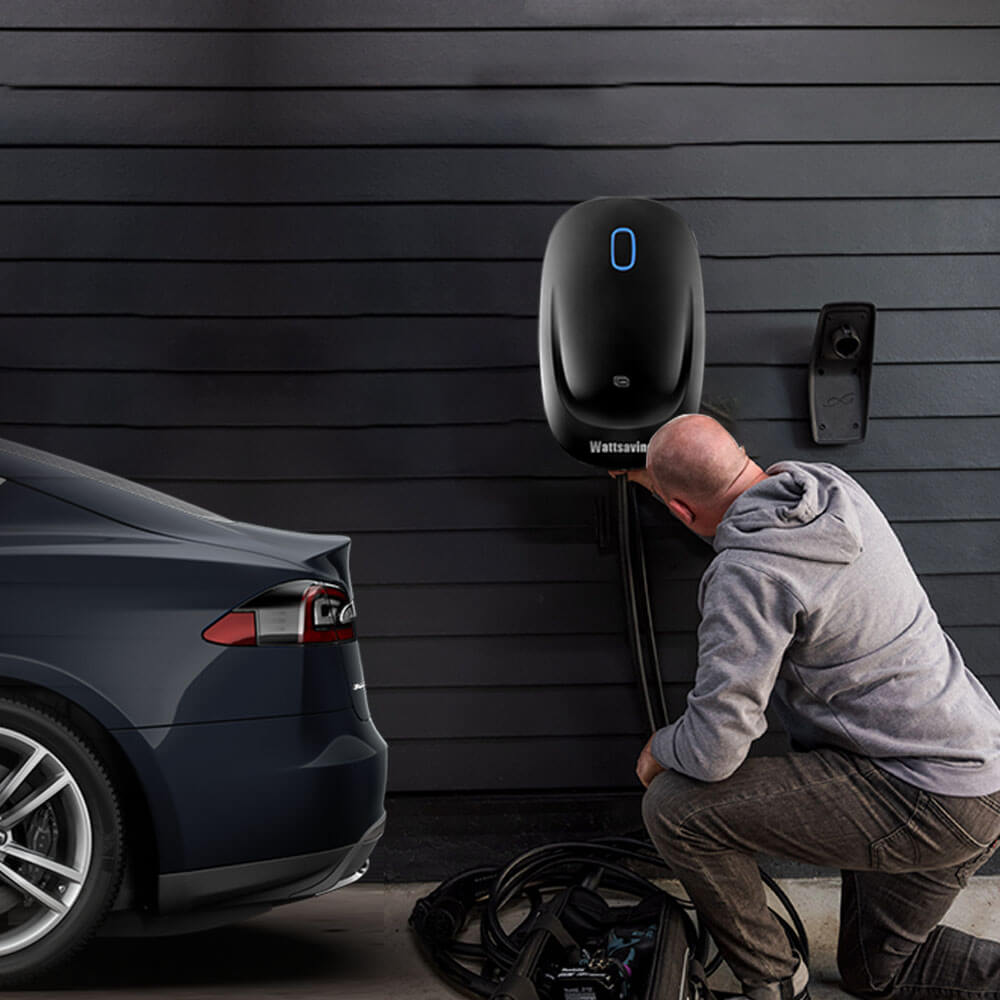

Easy To Setup & Install
You can easily install our EV charger with the wall docker. Plug into the NEMA-14-50 or NEMA-6-50 outlet and charge your vehicle.
Make Fun Of Charging

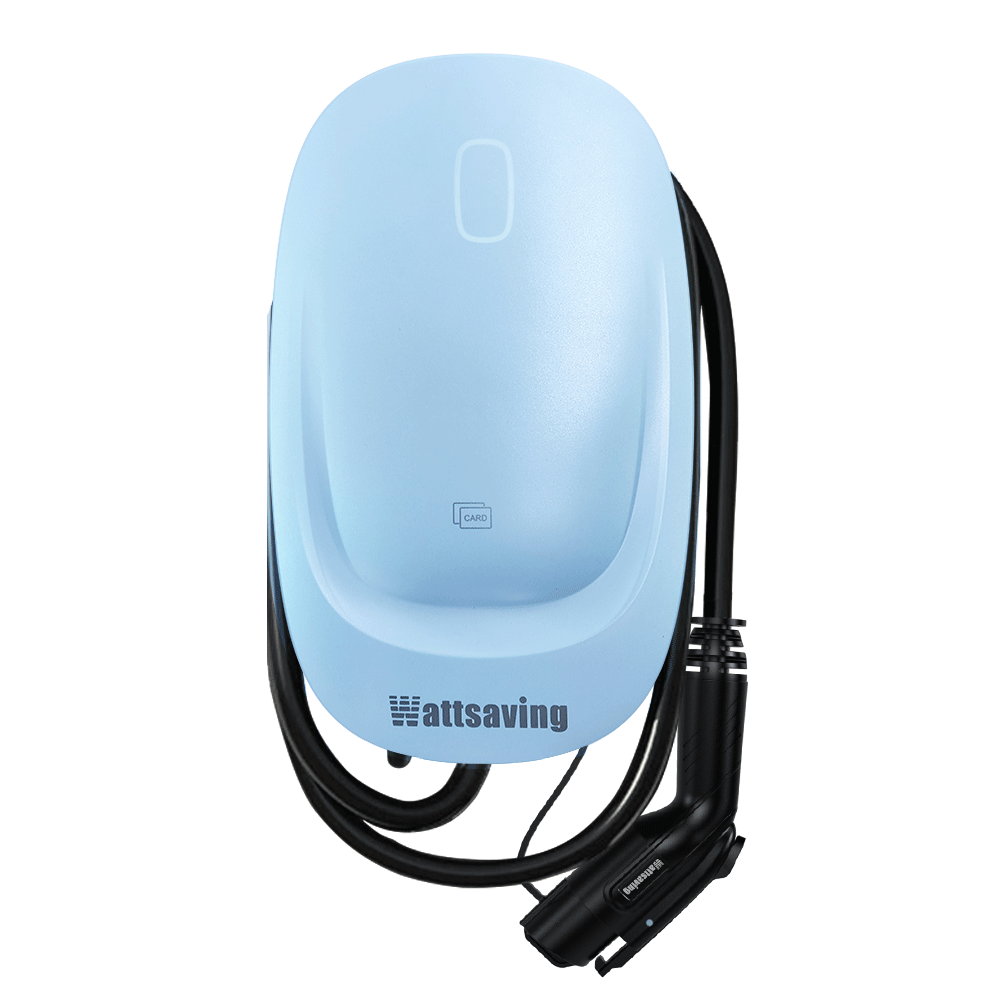

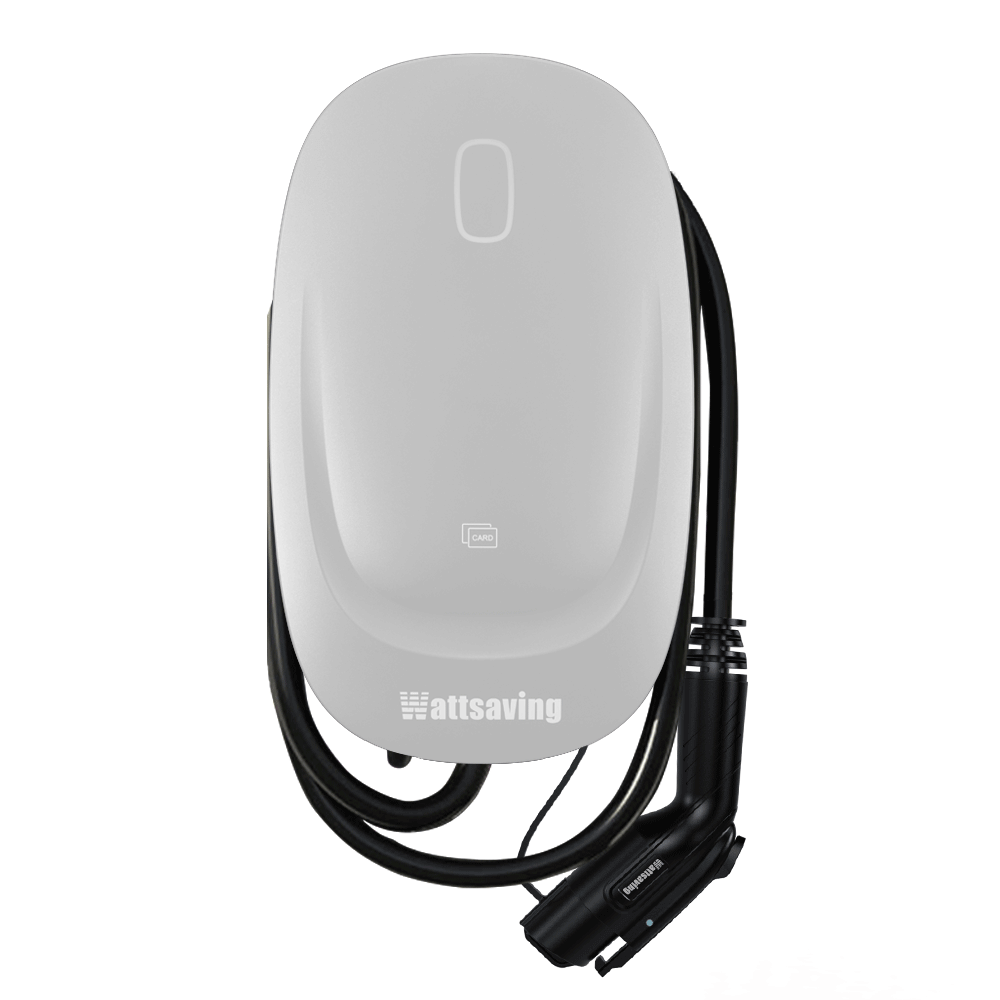

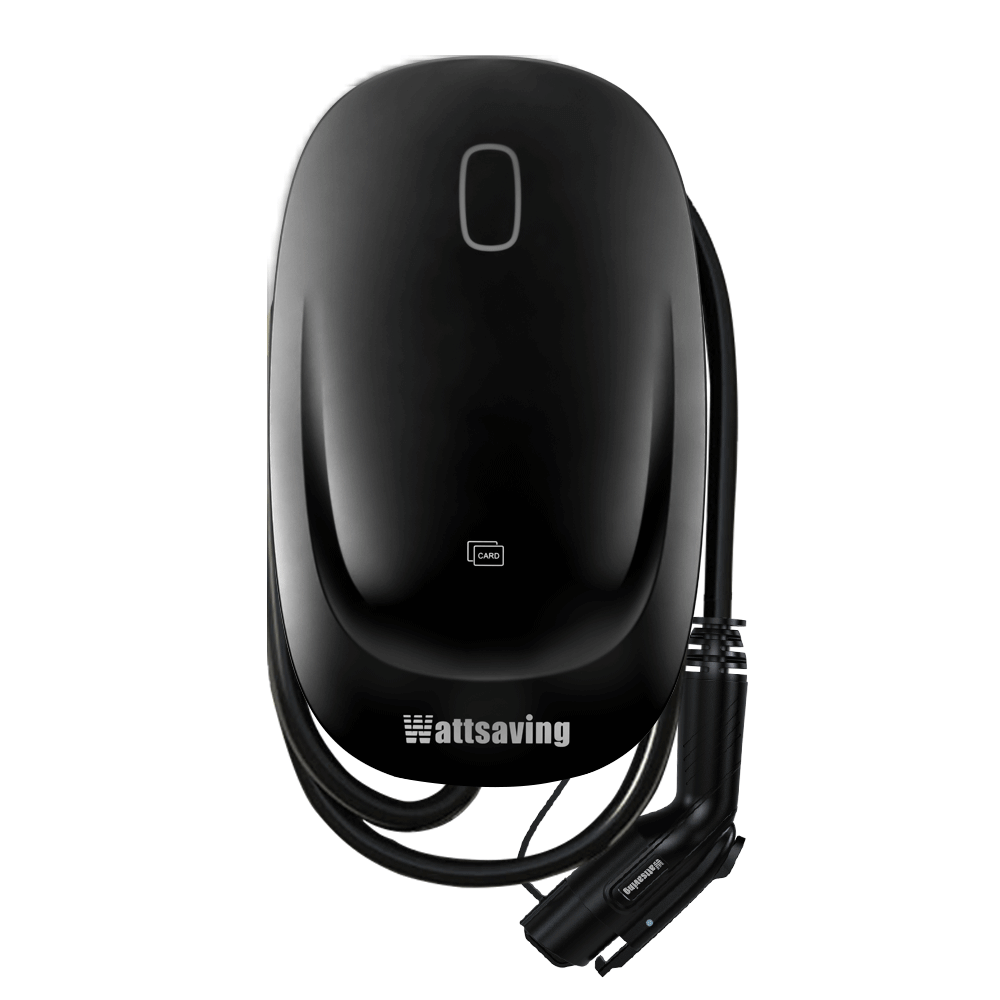

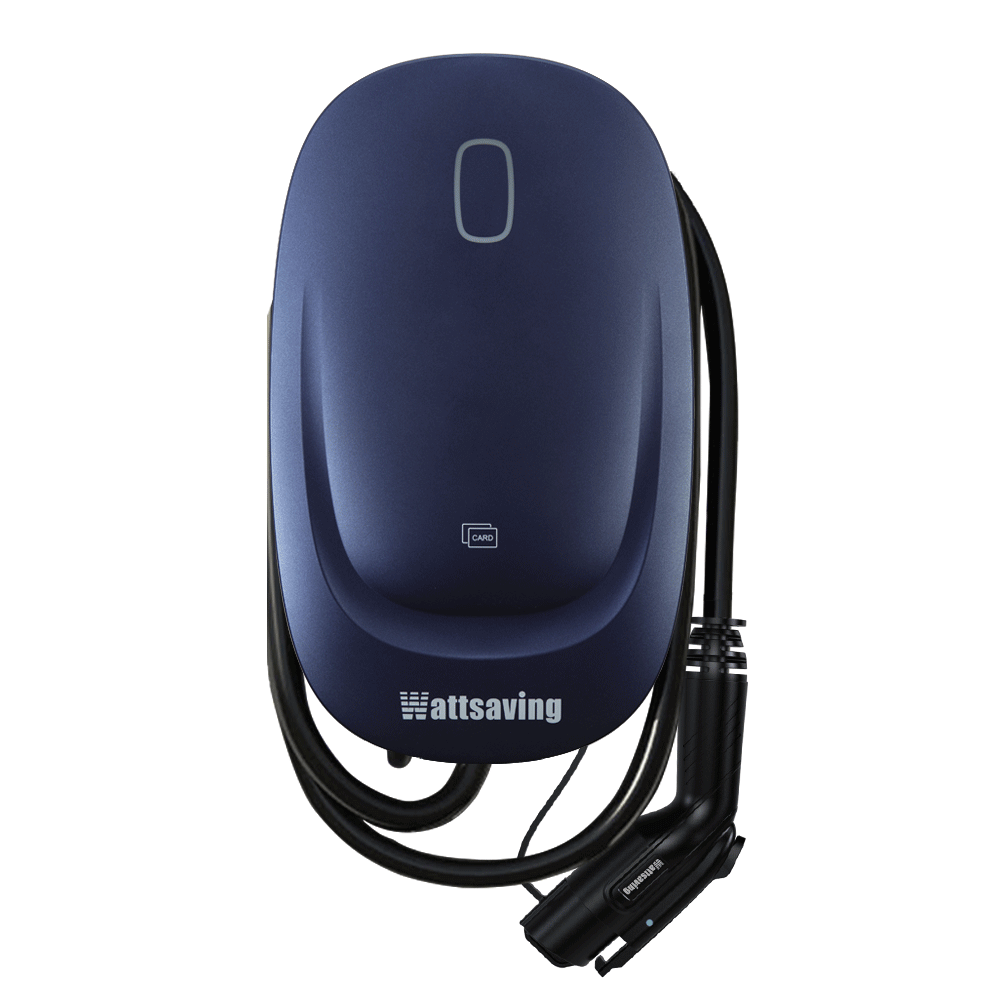

Wattsaving US10 EV charger provides 4 color(Black, Purple, White, and Blue) for your choice.

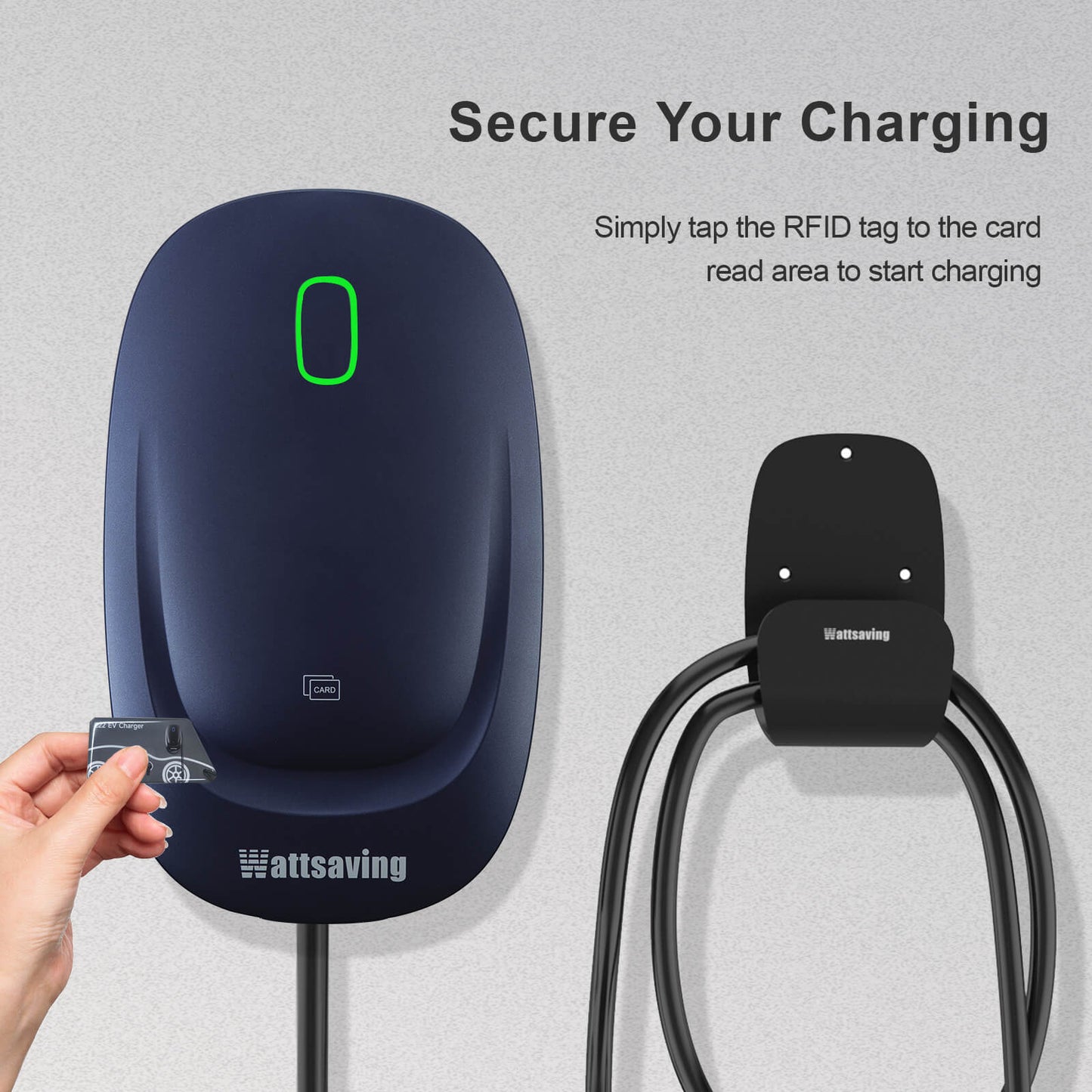

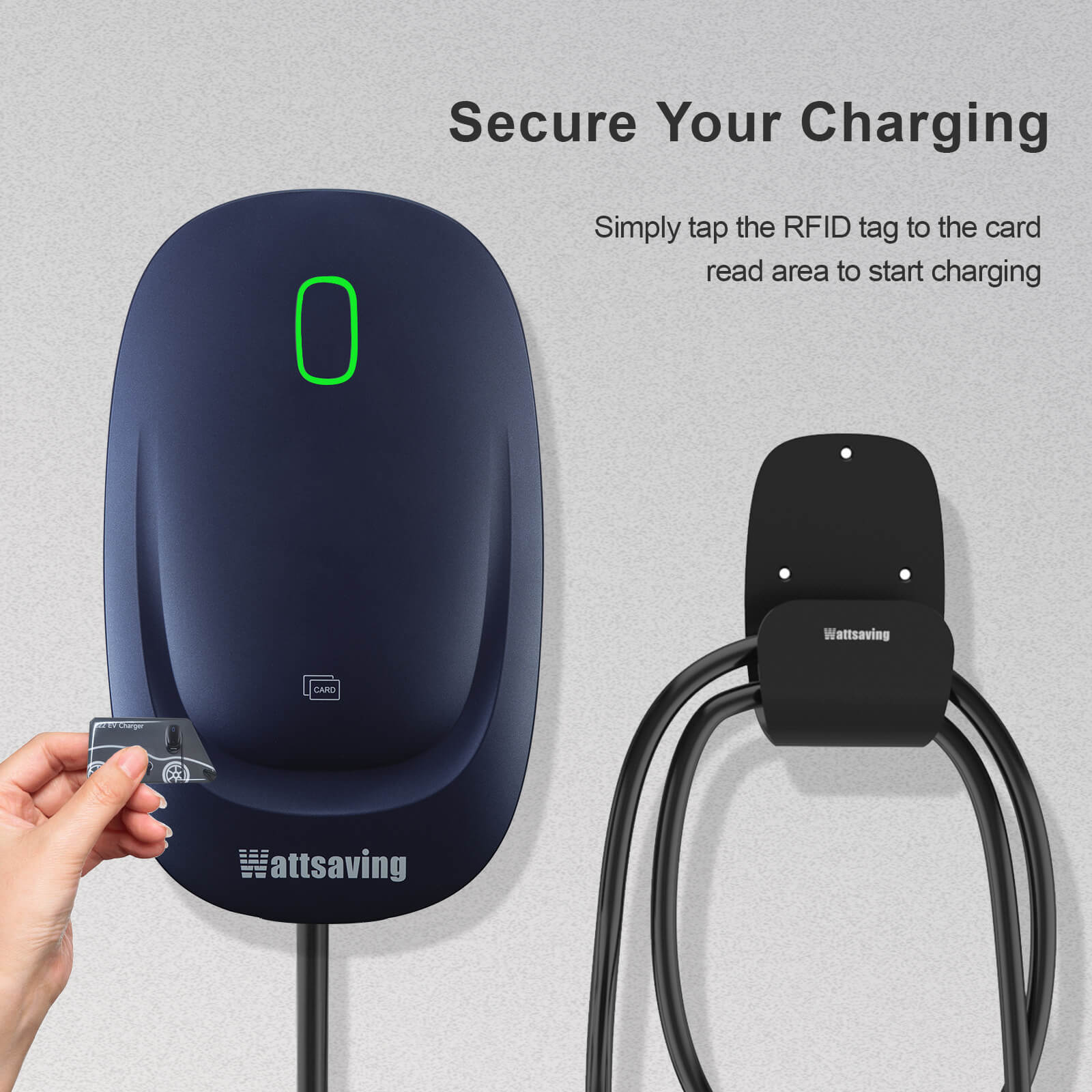

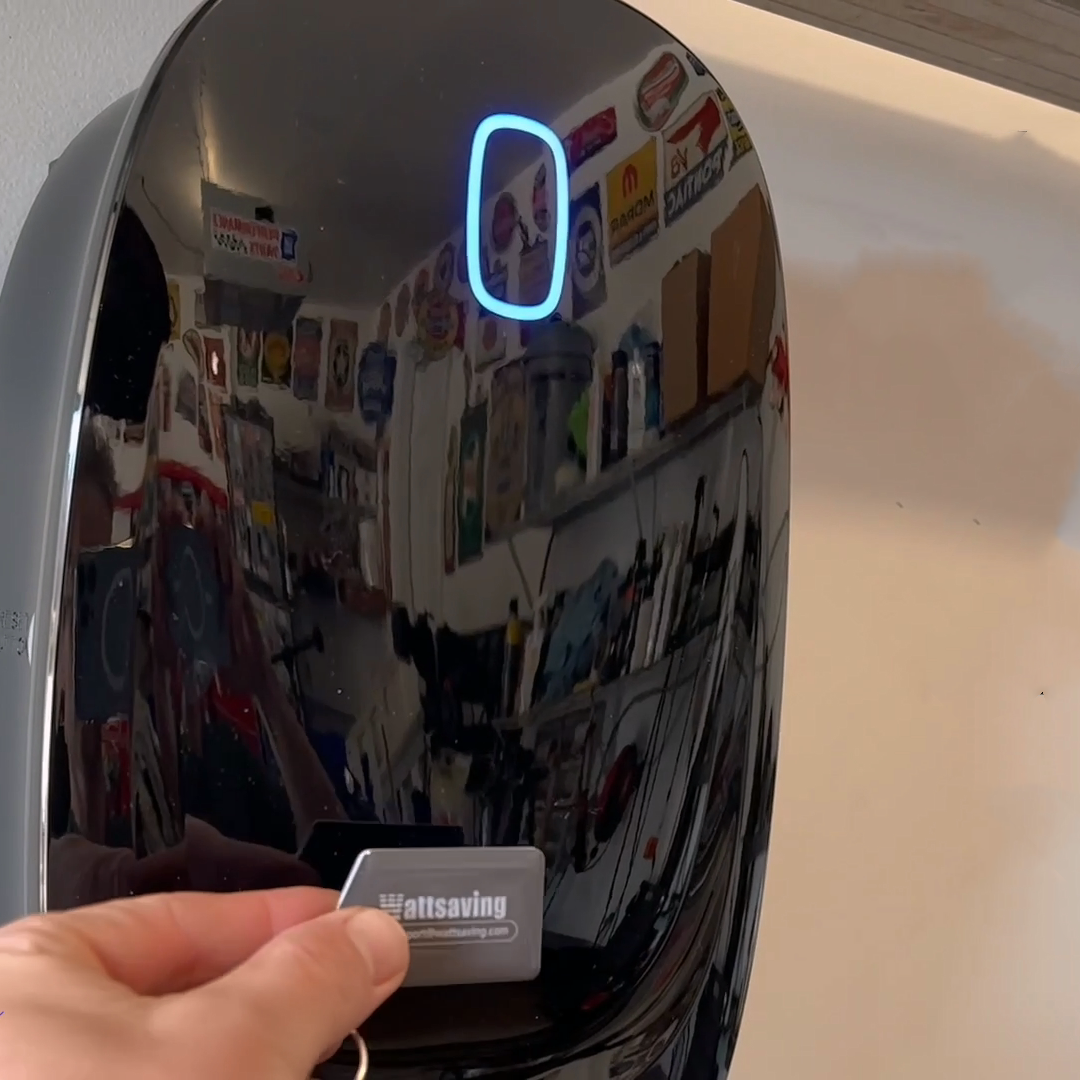

RFID Cards for Security
When the RFID activation charging mode is on, you can lock others away from using your Wattsaving EV charger.
