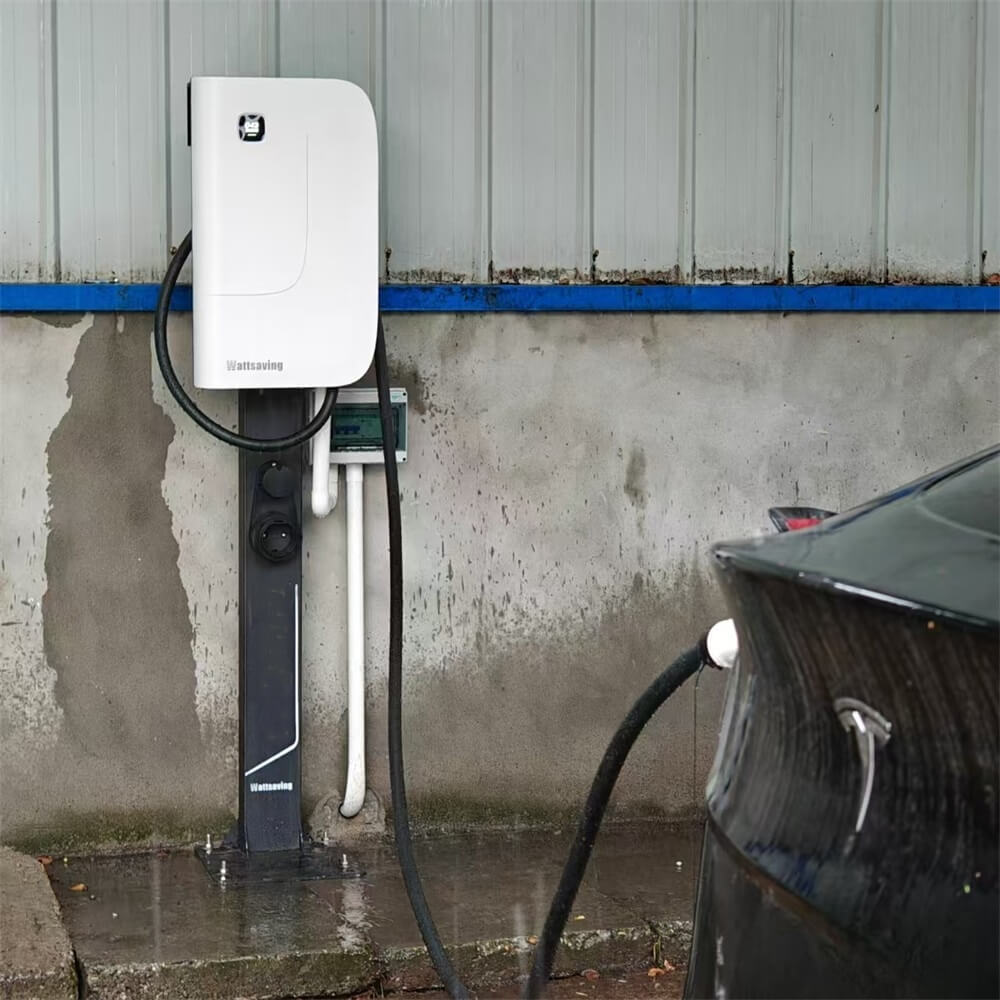

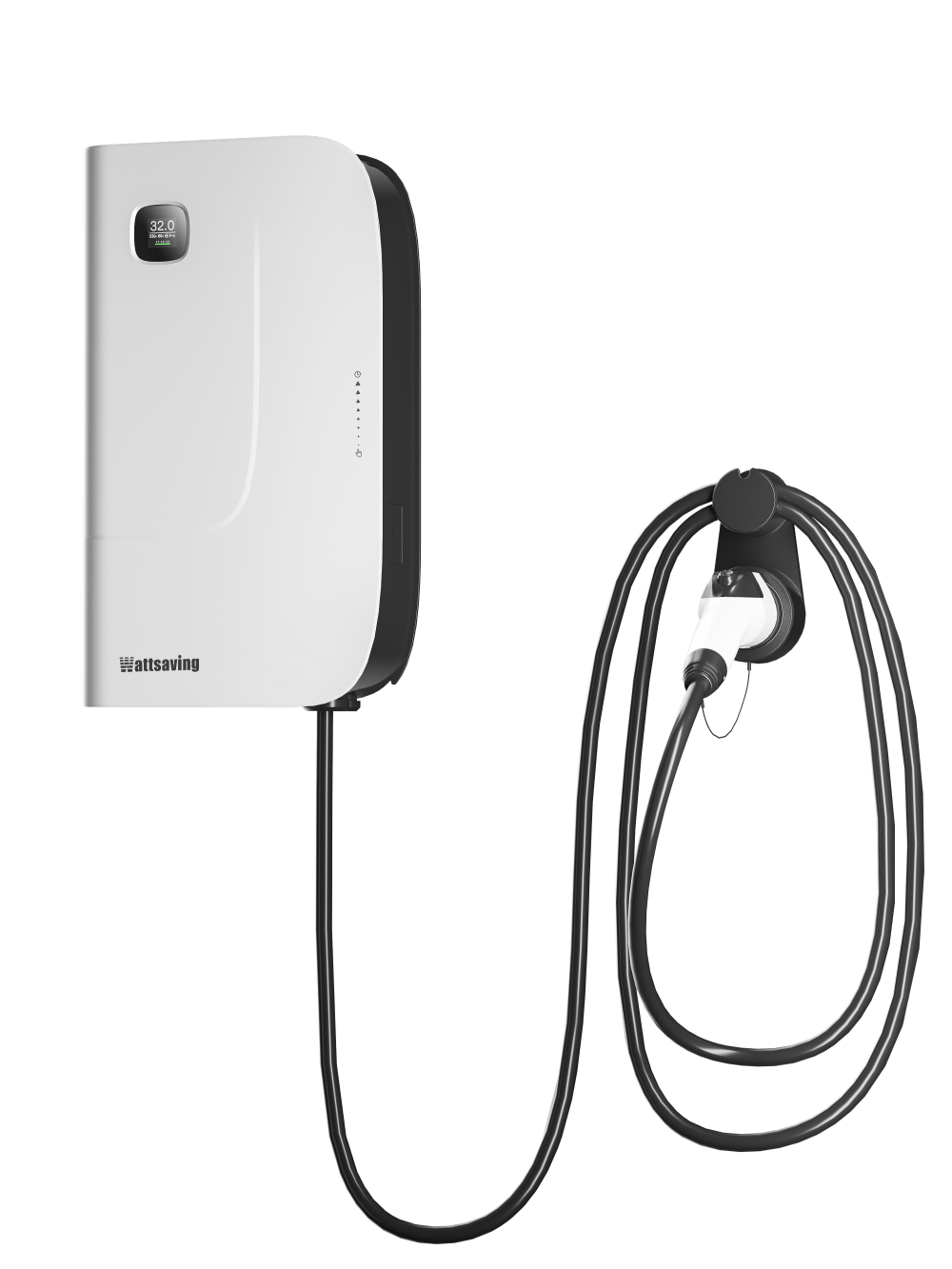

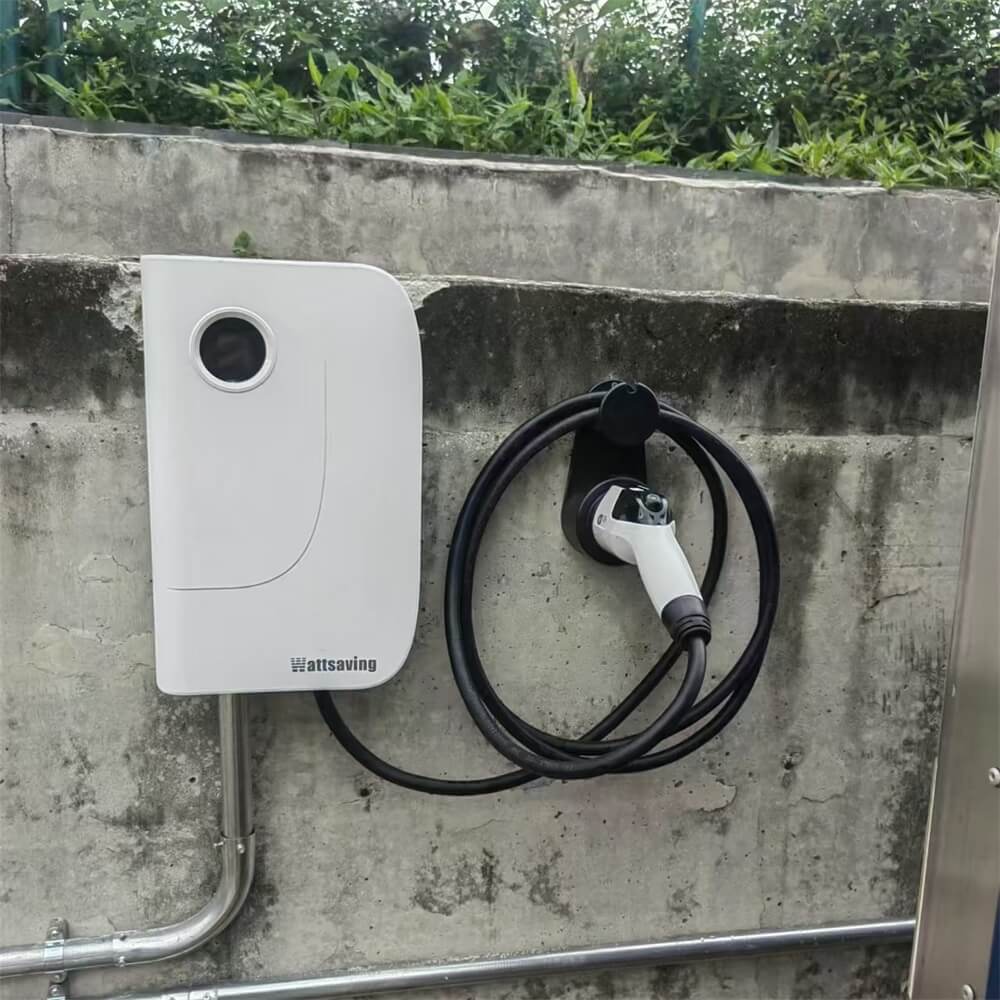

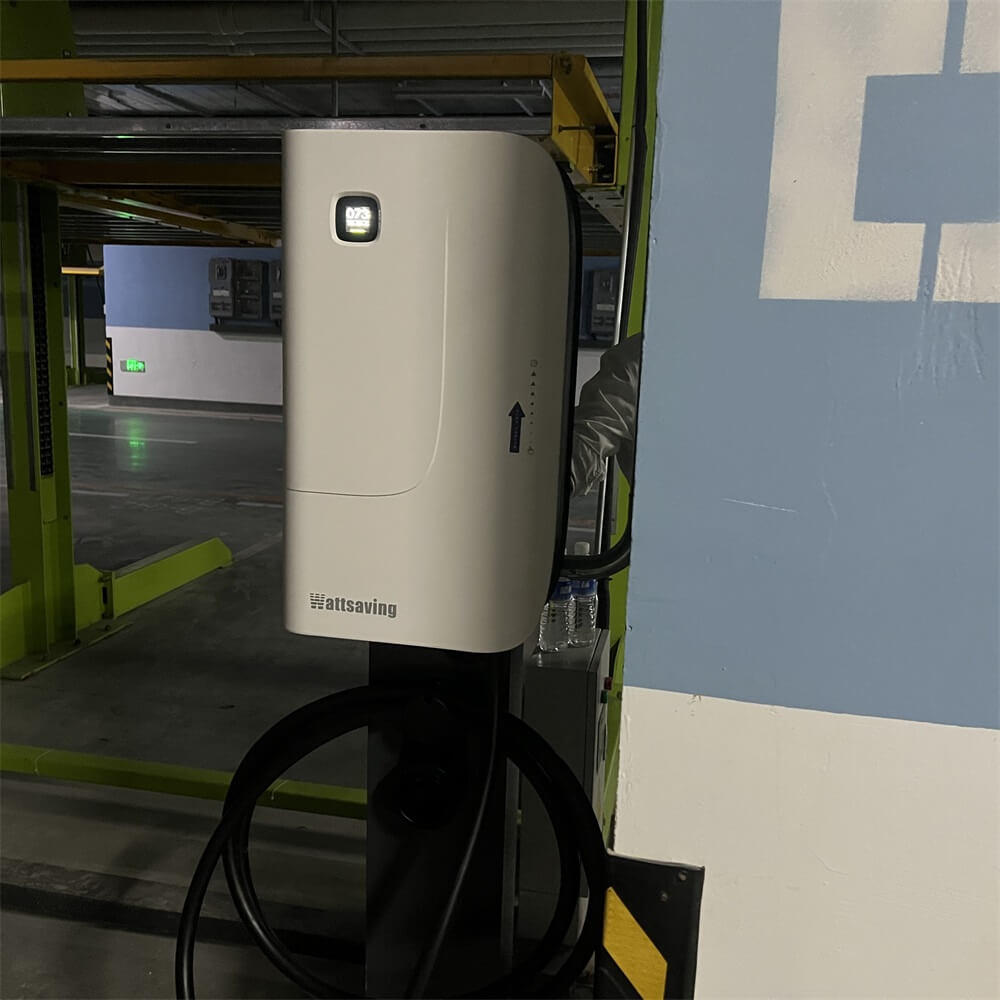

Wattsaving HQ22 22kW DC Charger

Wattsaving HQ22 22kW DC Charger

Type of Connectors

View full details

Collapsible content

Product Specification

Model Wattsaving HQ22
Output DC Power Maximum 22 kW
Input Voltage 323~480Vac,380Vac Type
Output Voltage 200~1000Vdc
Frequency 45-55Hz
Current 67A MAX
Efficiency ≥94%
Communication 4G/Bluetooth
Cable Length 5m/8m
Input Wiring Hardwired
Display 1.52" LCD Screen
Input Cord(three-phase) L1, L2, L3, N (Neutral), and PE (Protective Earth)
Protection Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under Voltage protection, Over/Under temperature protection.
IP Rated IP54
Storage Temperature -40 to 80℃
Operating Temperature -30℃~65℃
Operating Humidity 5%~95%
Connector 1
Standards

GB/T 18487.1-2015                                                  GB/T 27930-2015                                                    NB/T 33001-2018                                                    NB/T33008.1-2018

Dimension (H x W x D) 590*150*162mm
Weight 18.0kg
