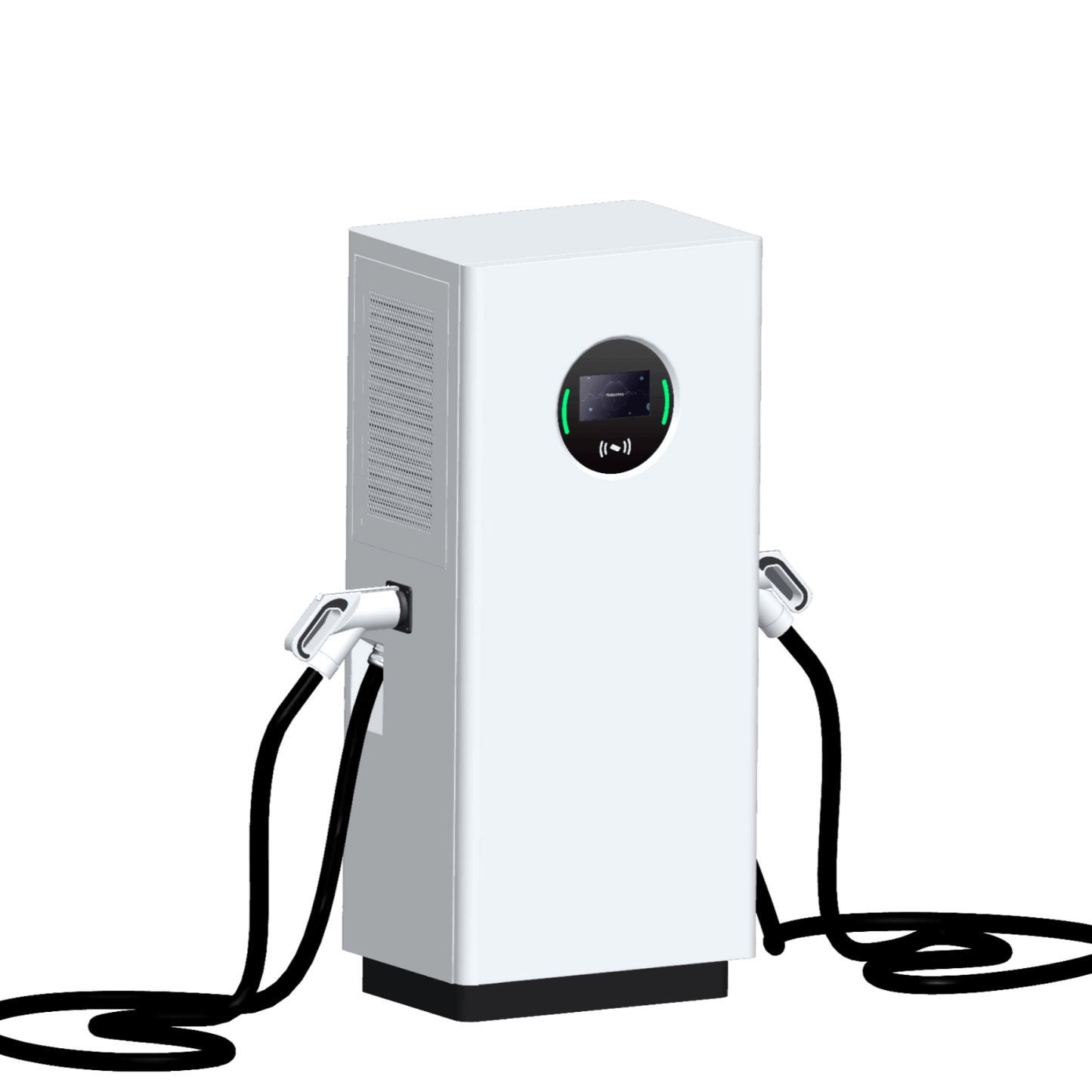

Wattsaving T240 240kW DC Fast Chargers
Wattsaving T240 240kW DC Fast Chargers
Collapsible content
Product Specification
| Model | Wattsaving T240 |
| Output DC Power | Maximum 240 kW |
| Input Voltage | 323~480Vac，380Vac Type |
| Output Voltage | 150~1000Vdc |
| Frequency | 45-55Hz |
| Current | 500A MAX (250A each) |
| Efficiency | ≥94% |
| Communication | 4G / Ethernet |
| Cable Length | 5m |
| Input Wiring | Hardwired |
| Display | 7-inch LCD Screen |
| Input Cord(three-phase) | L1, L2, L3, N (Neutral), and PE (Protective Earth) |
| Protection | Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under Voltage protection, Over/Under temperature protection. |
| IP Rated | IP54 |
| Storage Temperature | -40 to 80℃ |
| Operating Temperature | -40℃~55℃ |
| Operating Humidity | 5%~95% |
| Connectors | 2 |
| Standards |
GB/T 18487.1-2015 GB/T 27930-2015 NB/T 33001-2018 NB/T33008.1-2018 |
| Dimension (H x W x D) | 1750*950*700mm |
| Weight | 310.0kg |
| Warranty | 2 Years |
