Product Specification
Model | Wattsaving U20 |
Output DC Power | Maximum 20 kW |
Input Voltage | 323~473Vac,380Vac Type |
Output Voltage | 200~1000Vdc |
Frequency | 45-55Hz |
Current | 67A MAX |
Efficiency | ≥94% |

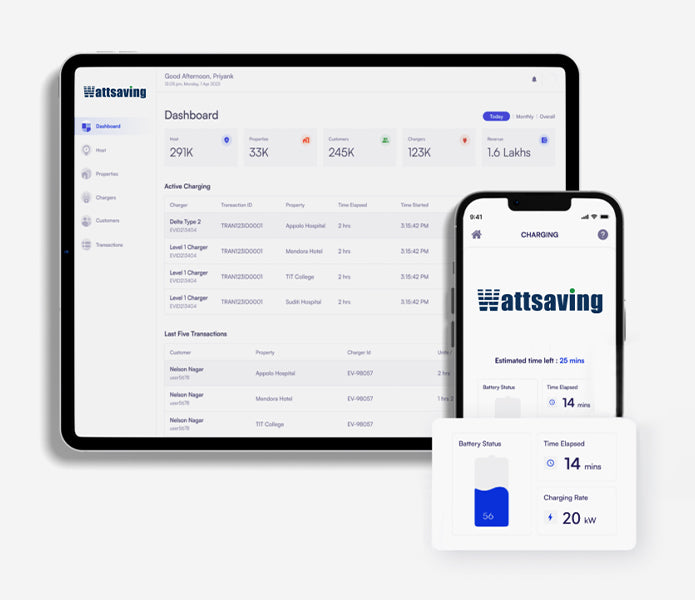

Charging Mode | RFID Activation |
Cable Length | 5m |
Input Wiring | Hardwired |
Input Cord(three-phase) | L1, L2, L3, N (Neutral), and PE (Protective Earth) |
Input Cord(single-phase) | L1, N (Neutral), and PE (Protective Earth) |

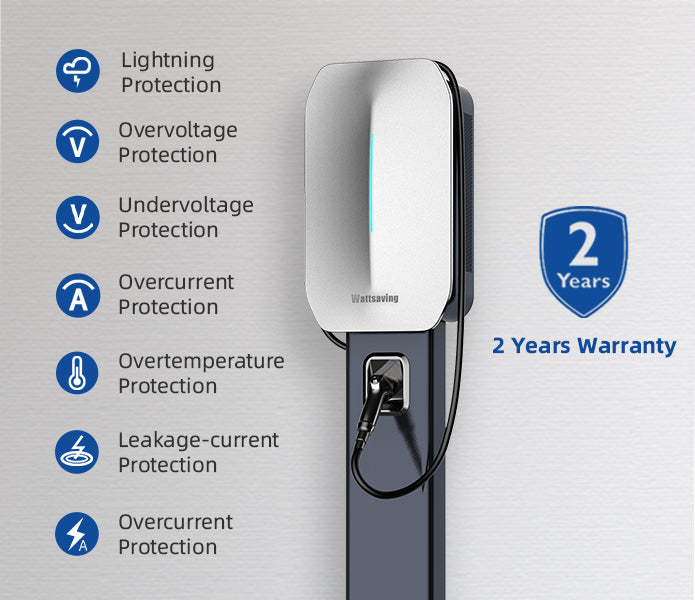

Protection | Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under Voltage protection, Over/Under temperature protection. |

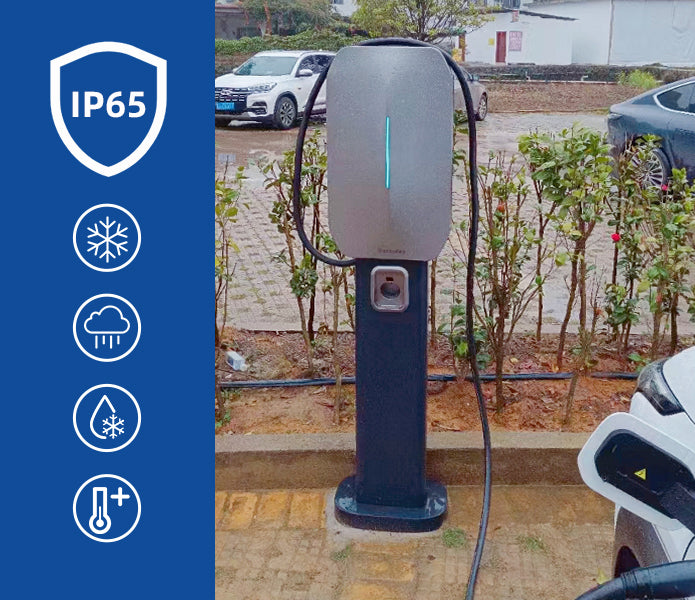

IP Rated | IP65 |
Storage Temperature | -40 to 80℃ |
Operating Temperature | -40℃~55℃ |
Operating Humidity | 5%~95% |
Certification | CE |
Standards | EN/IEC 61851-1:2019 EN/IEC 61851-21-2:2021 IEC/IEC 62955:201 IEC/IEC 62196-2 |
Dimension (H x W x D) | 900*570*500mm |
Net Weight | 47.0kg |
Gross Weight | 48.5kg |
Warranty | 1 Year |

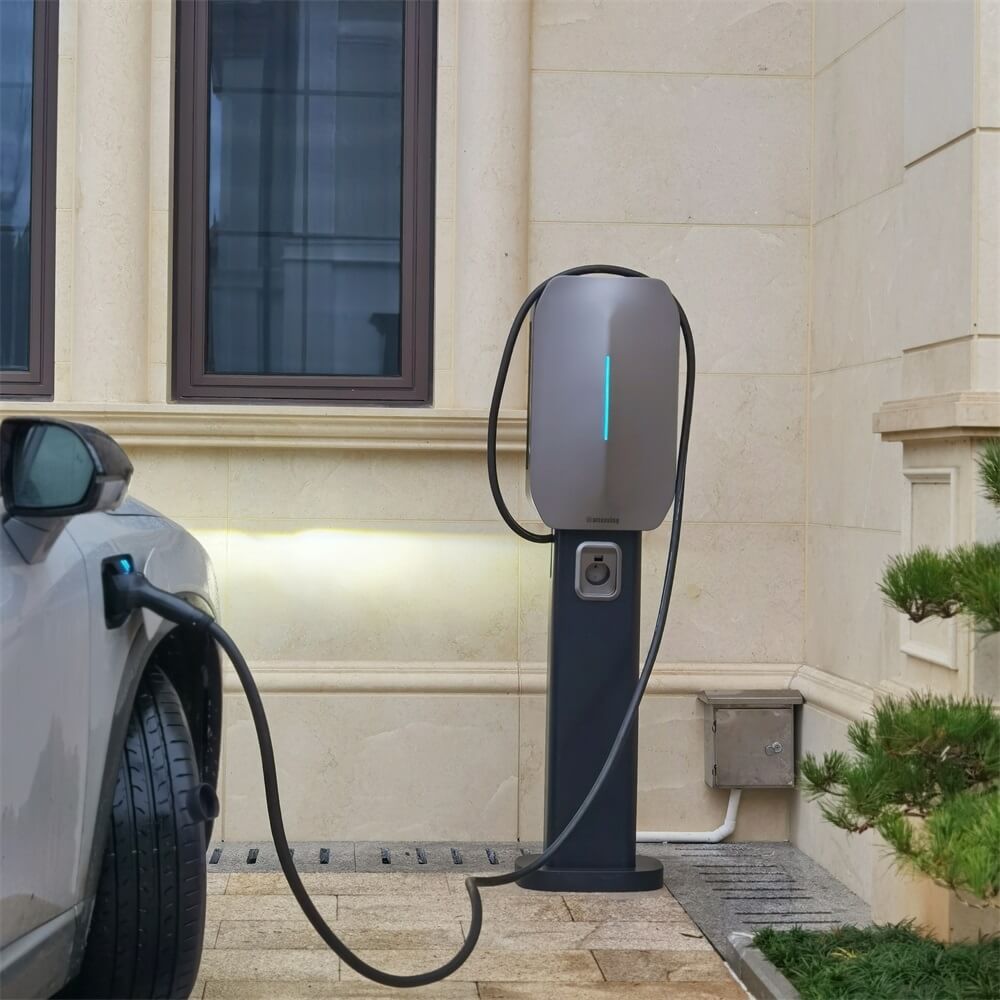

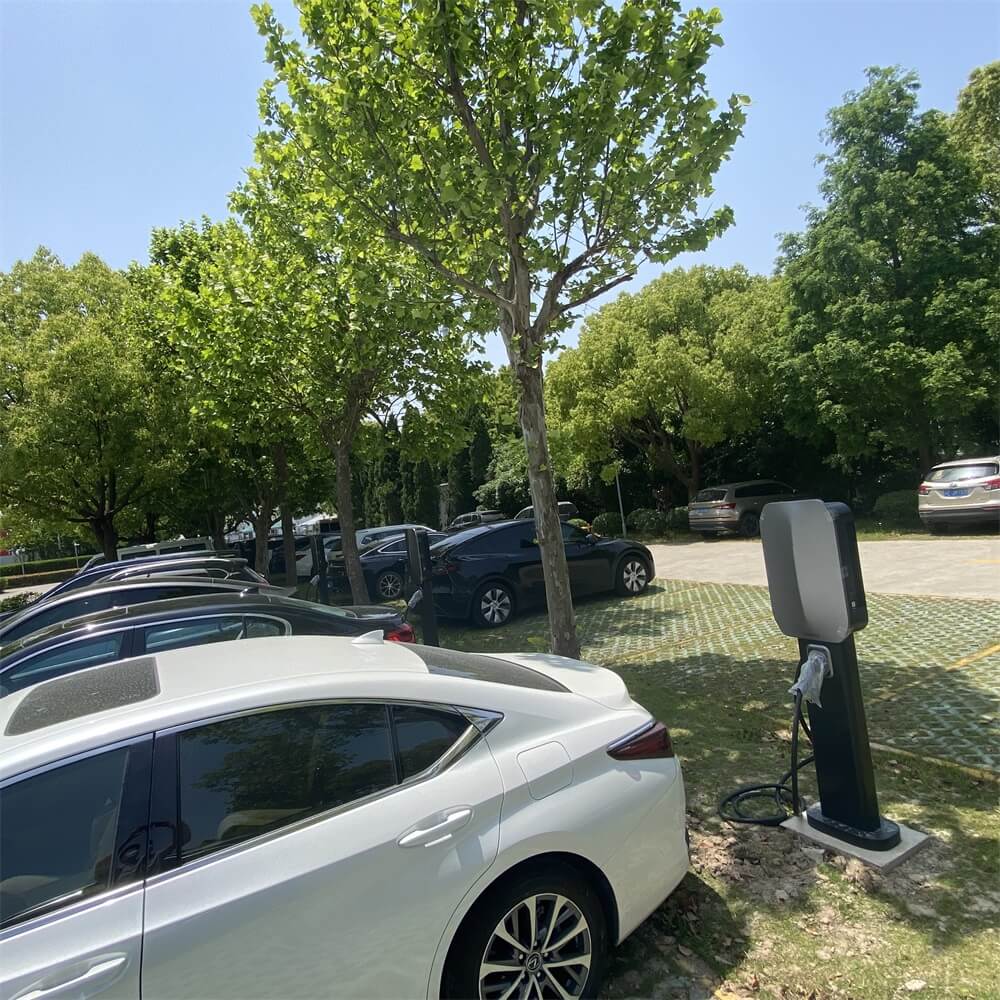

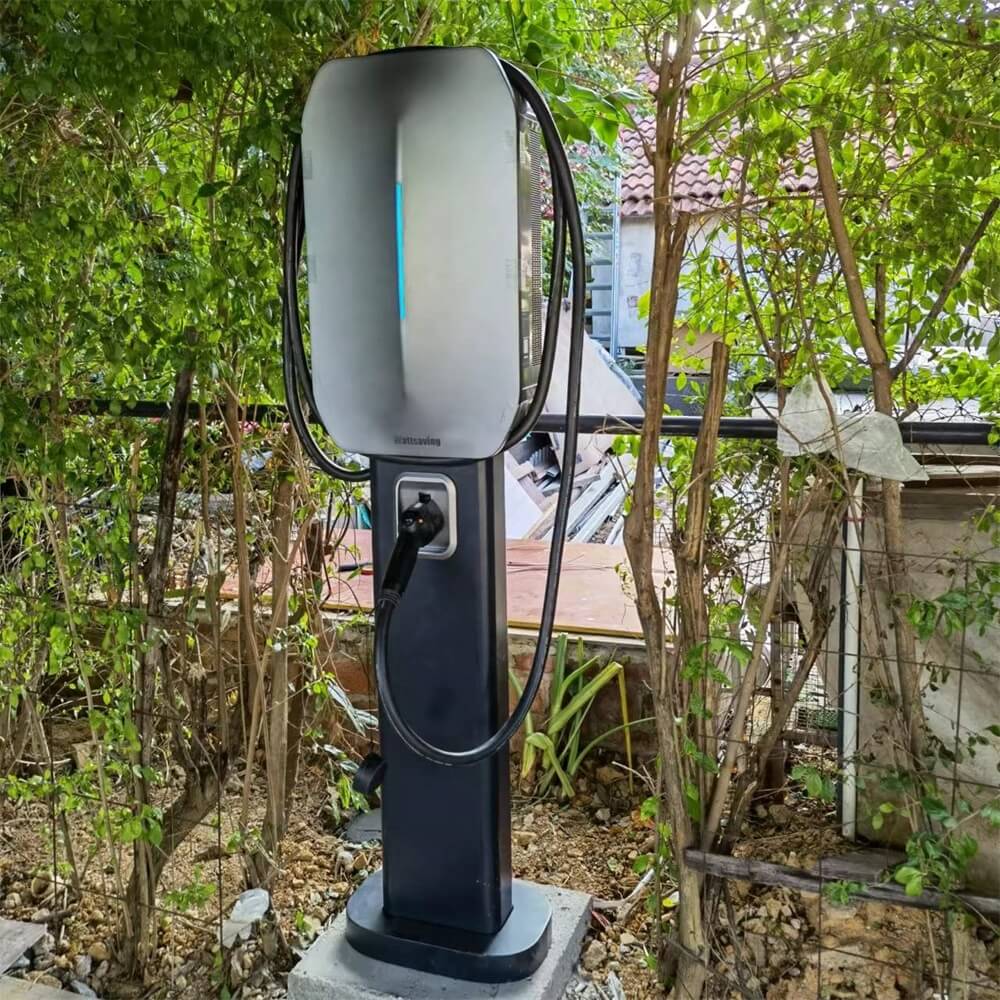

Installation | Wall mounted / Pedestal |
